Scissor Pivot Point: Parts, Care, and Service Boundaries

The pivot point is the joint around which the two scissor halves rotate. “Pivot” names the location and assembly; it does not reveal the correct adjustment, lubrication, diagnosis, or service process for every model.

Reference sectionWhat the pivot assembly may contain

Depending on the exact model, the assembly may include:

• a screw, post, nut, cap, or cover;
• flat, spring, wave, or maker-specific washers;
• a bearing or bearing carrier;
• a spring, click, ratchet, or dial mechanism;
• spacers, seats, thread treatment, or locking features;
• maker-approved adjustment tools or user-replaceable parts.

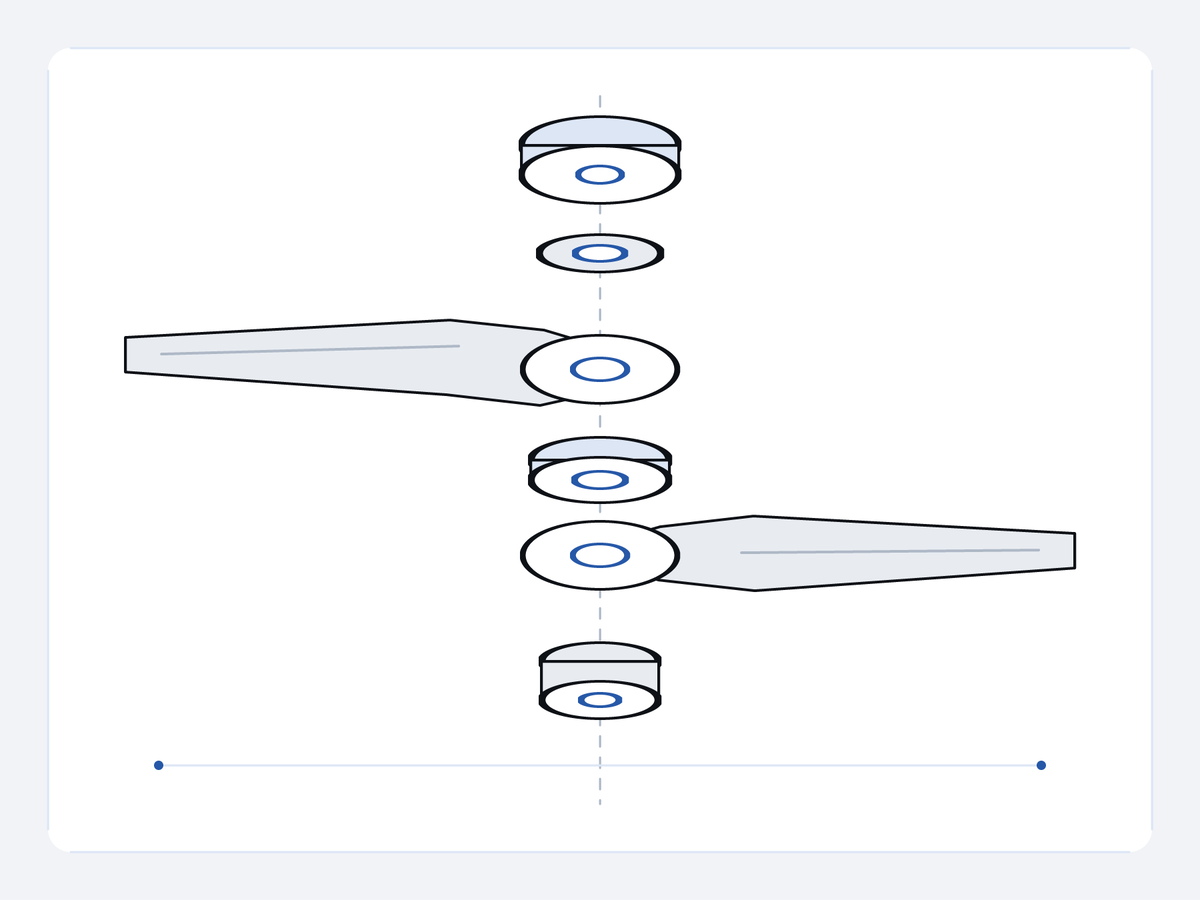

The exploded visual above is generic orientation only. It is not an assembly order, parts catalog, torque instruction, or disassembly guide.

Joewell’s official handle and screw guide illustrates several pivot and adjustment examples in one maker’s catalog. It does not define an unrelated model.

Reference sectionWhat the literature describes about the internals

Where the internals of a pivot are described, the description is type-level. It says how one kind of assembly is made, not what is inside the scissor in your hand.

• In the process documented by V.ROAD (Yaoki Industry), a Seki City maker, the halves are joined and checked at the kashime (riveting and pivot assembly) stage, where even 0.1 mm of misalignment produces uneven blade closure.
• The pivot hole has to match the screw diameter for the life of the part. A hole that does not lets the blade shift laterally during the cut; one that is too tight binds on the screw. No cross-maker tolerance is published for this fit, so the exact model’s maker is the reference, not a number carried over from another design.
• Bearing packs are described as a sealed or resin-packed assembly between the blade faces that converts blade-to-blade contact from sliding friction to rolling friction. Ball count, ball size, enclosure and any change in opening resistance are design-specific: no figure for them is established across bearing-pivot scissors, so treat a quoted number as belonging to one maker’s model.
• Washer material shifts feel and wear in a smaller way. Metal washers deform gradually over thousands of cycles, while nylon and PTFE wear faster but more predictably, which is why tension washers are a service item and a setting that goes loose within days points at the stack rather than at the screw.

None of these descriptions identify the assembly in a scissor you are holding. Covers and dials conceal different stacks, and the maker’s diagram for the exact model remains the only parts reference.

Reference sectionSeparate the pivot from a tension diagnosis

The pivot participates in blade movement, but a changed feel can involve more than one area. Possible observations include:

• unexpected resistance, looseness, noise, catching, or movement;
• a changed stop, release, or control compared with the tool’s baseline;
• a visibly loose, missing, damaged, contaminated, or altered component;
• evidence of a drop, impact, chemical contact, unauthorized adjustment, or prior service;
• cutting behavior that differs from approved practice.

None of these observations proves that “tension” is the cause or that adjustment is the remedy. Blade relationship, condition, contamination, damage, fit, technique, and service history can overlap.

Do not keep turning the pivot until cutting changes. Do not use client hair, tissue, gravity-drop rules, or finger contact to diagnose it.

Reference sectionRecord the exact model and baseline

Do not infer a bearing, thread, washer, or part from exterior appearance. Covers and dials can conceal different assemblies.

Reference sectionAdjustment boundary

Adjust only when all of these are true:

1. The tool is positively identified.
2. The current maker instructions cover that exact model.
3. The user is authorized and trained for the stated adjustment.
4. The specified tool and process are available.
5. No drop, damage, contamination, missing part, or unexplained change is present.
6. The workplace permits the task.
7. The result can be checked on approved practice material without exceeding return or warranty terms.

If any gate fails, isolate the tool and contact the maker or qualified provider. Do not disassemble a pivot merely to inspect it.

Care and serviceCare is maker specific

The oil-placement macro is an orientation aid. It does not prescribe oil type, drop count, frequency, blade position, flushing, disassembly, or a universal application point.

Use:

• the exact maker’s current cleaning, drying, lubrication, and adjustment instructions;
• the care product’s label;
• the workplace sanitation process;
• applicable local requirements.

Hikari’s daily-maintenance page applies to Hikari tools. It demonstrates source scope, not a universal pivot-care routine.

Do not use cooking oil, generic machine oil, solvent, abrasive, compressed air, pointed tools, immersion, or another improvised method unless the exact maker and workplace process explicitly support it.

Reference sectionWhen to isolate and escalate

Stop using the tool on clients after:

• a drop, impact, bend, crack, or missing component;
• visible corrosion, contamination, or chemical uncertainty;
• unexpected action, noise, resistance, looseness, or reduced control;
• an adjustment outside maker instructions;
• unknown service, parts, or custody history;
• a practice result that differs from the established baseline.

Provide the maker or qualified provider with identity, official instructions, baseline, observations, incident history, photographs, authorized tasks, and current custody. Ask what is in scope, what work is proposed, which parts are available, and what evidence will support return to use.

Compare contextCompare pivot systems without a ranking

Do not rank flat screw, bearing, dial, click, spring, or “contactless” systems from the label. Verify the complete model and support route.

Source trailSources and limits

The Joewell and Hikari pages cited here describe those makers’ own products or care. They do not define the assembly, adjustment, oil, interval, tolerance or diagnosis of another pivot. The technical visuals are generic orientation aids.

The only figure stated above is the kashime tolerance documented by V.ROAD (Yaoki Industry) for its own process. No cross-maker tolerance for the pivot-hole fit is published, and an earlier version of this page carried ream, ball-count and friction-reduction figures that traced to a maker technology page no longer reachable. They were removed rather than restated, because a citation that cannot be checked is not a source.
