Touch Point
Touch point is an ambiguous phrase in scissor anatomy. It may describe the moving crossing of the cutting edges, while a maker’s contact terminology can refer to a bearing area near the pivot. Identify the location and the source’s vocabulary before using the phrase to explain cutting behavior, lubrication or repair.
Turn a symptom or feature into a precise service brief
Locate the broad part family, use maker wording, record the observation, and ask a scoped service question. Apply to Touch Point- 01 Locate Start with tip, blade, pivot, shank, rings, rest, or contact area.
- 02 Name Match the exact model's diagram and terminology.
- 03 Describe Record visible condition, sound, resistance, incident, and baseline change.
- 04 Brief Ask what is in scope, what work is proposed, and how return is verified.
Do not inferOne photograph, sound, feel, pull, fold, or visible mark cannot identify a cause or authorize adjustment or repair.
Touch Point
Quick look

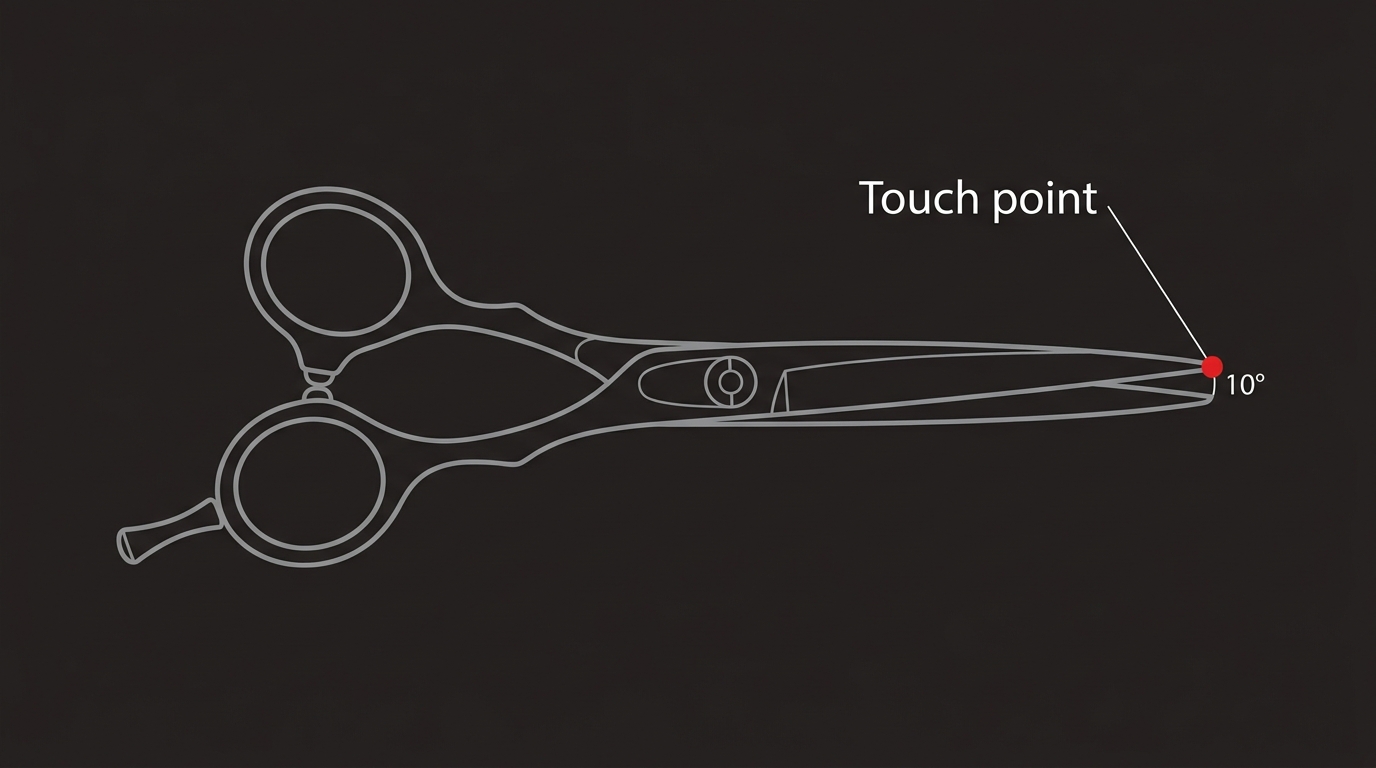

- Cutting location: Describe where along the blades the edges cross during closure.
- Bearing location: Identify the pivot contact or bearing arrangement for the model.
- Japanese vocabulary: Joewell uses 触点 (shokuten) in bearing and care descriptions.
- Service request: State the observed problem and location before naming a suspected fault.
Joewell care notice, bmac contact mechanisms.
Why it matters
A description of the cutting action and an instruction about a pivot contact answer different questions. As ordinary cutting scissors close, their edge crossing progresses along the blades. That observation does not identify every surface supporting the assembly or mean the whole tool has exactly one mathematical point of contact.
The previous version of this page equated shokuten with the traveling cutting point. Joewell’s published vocabulary does not support that equivalence: its care notice separately names shokuten and the blade’s inner hollow. bmac also uses shokuten in its descriptions of named bearing mechanisms. Preserve those distinctions when translating a service instruction. bmac mechanism description, care locations.
| Question | Relevant location | Information to obtain |
|---|---|---|
| Where does a cut fail? | Heel, middle or tip of the cutting blades | The task and point in the stroke where the symptom appears |
| Where does the maker specify lubrication? | Named contact or other instructed area | The correct model’s care diagram and product instructions |
| What is being restored? | Edge, inner land, hollow or pivot arrangement | A written service scope tied to the inspected pair |
| What does contactless mean in a listing? | The arrangement described by that maker | Its component specification, rather than a literal reading applied to the entire scissors |
A marked photograph or a maker’s part diagram can help remove ambiguity. Label the location in the image rather than expecting a translated nickname to be understood identically by a buyer, retailer and sharpener. A diagram explains where a part is; it does not establish the condition of a particular pair.
Sources
The Joewell COAXIS listing describes a contactless double-bearing screw. That example shows why a pivot term should stay attached to its design. It does not establish that the cutting edges remain separated throughout a cut. Nor does it make a conventional bearing arrangement inherently inferior. Maker model description.
Scissors Yamato’s repair conditions distinguish standard and special contact structures and allow for assessment before work. They support asking about the actual construction and possible component changes; they do not provide a universal owner adjustment procedure. Provider’s repair terms.
Context and comparison
If scissors develop a catch or start folding hair, describe the symptom rather than concluding that the touch point is “off.” Note when the problem began, where it occurs, and whether the scissors were recently dropped, adjusted or serviced. Give the technician the model identification and earlier service information where available.
A light-gap observation by itself does not supply a model’s setting tolerance or establish that grinding is necessary. The assembled tool needs assessment against its design and intended use. Ask what was found, what work is proposed and how the returned scissors will be checked. Keep the result in the service record so a later change can be compared with documented work.
For reading across this reference section, use ride line for the discussion of contact-land terminology and urasuki for the inner recess. The hit point belongs to the handle-stop discussion. These locations should remain distinguishable even when a seller uses the word “contact” for more than one of them.
See Also
Sources
4 sources- 🇯🇵 Joewell: Scissor cleaning and care, May 2020 (manufacturer technical guidance)
- 🇯🇵 Joewell: Web-shop model specifications (manufacturer product listing)
- 🇯🇵 bmac: Spin, Silky and Flat contact mechanisms (manufacturer technical guidance)
- 🇯🇵 Scissors Yamato: Urasuki repair scope and conditions (specialist service)
Frequently Asked Questions
4 answers you can open one at a timeWhat does touch point mean on this page?
This page distinguishes two uses: the cutting edge crossing during closure and a maker’s named contact or bearing area. Identify the location and source vocabulary before using touch point in a service request.
Is shokuten a direct translation of the moving cutting point?
No universal equivalence is established. Joewell names shokuten as a care location distinct from the inner hollow; bmac uses it for named bearing mechanisms. Keep the maker’s term attached to its component.
Does a contactless pivot mean the cutting edges never touch?
No. Joewell’s COAXIS description concerns a double-bearing screw arrangement. It does not describe scissors cutting with no interaction between the cutting edges.
What should I report when the scissors catch or fold hair?
Identify where in the stroke the problem occurs, when it started and any recent impact, adjustment or service. These observations support assessment; they do not prove that one contact surface or the blade curvature is responsible.
